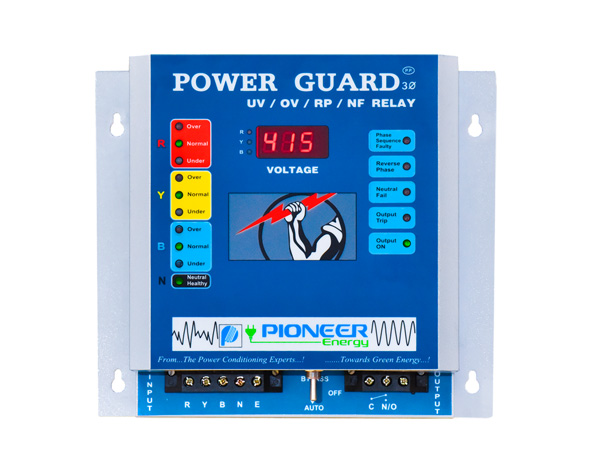

Power Guard
Features
Detection & Tripping for
Neutral failure
Neutral failure along with phase reversal
Phase sequence reversal
Over voltage
Under voltage
LED indications along with audio alarm
LED display for incoming voltage (RN, YN, BN, RY, YB, BR)
Manual bypass switch
Specifications
| No | Characteristics | Specifications/Rating | ||
|---|---|---|---|---|
| Power Guard 3Ø | Power Guard 1Ø | |||
| 1 | Function | Detection & Tripping for Undervoltage / Overvoltage / Neutral fail/ Reverse phase/Phase sequence faulty | Detection & Tripping for Undervoltage / Overvoltage / Neutral fail / Reverse phase / Neutral-Earth Leakage | |
| 2 | Supply Voltage | 415VAC 3 Phase / +20%, -30% 5 wire (R Y B N & E) | 230VAC 1 phase / +20%, -30% 3 wire (P N & E) | |
| 3 | Frequency | 47 Hz to 53 Hz | 47 Hz to 53 Hz | |
| 4 | Trip Levels | Under Volt – 315V Phase to Phase | Under Volt – 170 V | |
| Over Volt - 460 V Phase to phase | Over Volt – 270 V | |||
| Phase fail | Neutral - Earth Leakage >30V | |||
| Neutral - Earth Leakage >30V | ||||
Power Guard (Neutral Failure Relay)
Power guard is the new invention by Pioneer Energy, Protection for the neutral failure.
State Electricity Board is supposed to supply H.T. as well as L.T. Electricity to consumer premises, for predetermined voltages i.e. 440 volts for three phase supply & 230 volts for single phase supply.
But practically, these supply conditions are not maintained. Either voltages shoots up (crosses upper limit) or gets declined (crosses lower limit) & further resulting into damages to the equipments connected.
A break in neutral conductor, within three phase or single phase system, can result into wide voltage variation between phase to phase and phase to neutral& shall cause heavy damages to the equipments connected to the system.
Sometimes, the neutral provided is opened & for single phase supply, reverse phase is fed in place of neutral, resulting into very high voltage (@440 volts) & as a result, due to this sudden voltage shoot-up, the equipment’s connected gets burnt out.
Also if, the RYB sequence initially set is reversed from supply side, resulting into nonfunctioning of the three phase equipments connected.
Power Guard (Neutral Failure Relay) is an ‘Electrical Circuit Protection’. It automatically Cut-OFF the main supply when sudden High Voltage, Low Voltage, Neutral Loss, Phases Loss occurs. It avoids damages to the Three phase & Single phase electrical appliances & wiring.
