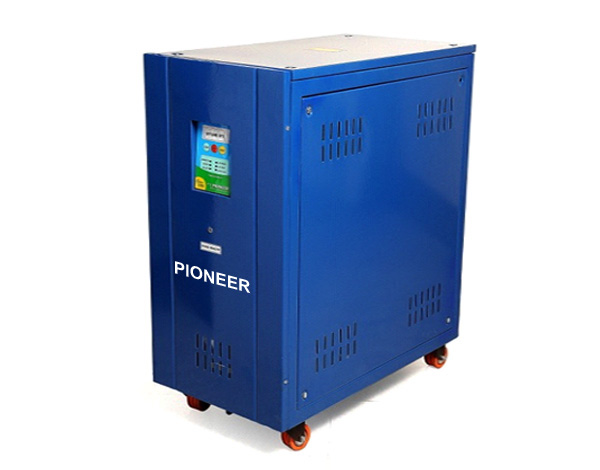

Lift UPS
Specifications
| No | Characteristics | Three Phase |
|---|---|---|
| 1 | Rating | 6KVA to 100KVA |
| 2 | Technology | IGBT Based |
| 3 | Input Voltage | 415V ±20% |
| 4 | Output Voltage | 415V±1% |
| 5 | Frequency | 50HZ +-1HZ |
| 6 | Power Factor | 0.8 lagging |
| 7 | Output Waveform | Pure Sine Wave |
| 8 | Efficiency | >85 – 92% depending on DC Voltage |
| 9 | Protection | Overvoltage, Under voltage, Overload, Battery Overvoltage, Under voltage, Short Circuit, Input Single Phase, Phase Reversal |
| 10 | Indications | >Mains ON, Phase Fail, Charger ON, Battery Low, Overload, Load on Mains, Load on Inverter |
Lift UPS systems are used to operate Lifts / Elevators on batteries when MSEDCL supply fails. It is typically an inverter which passes the mains voltage to the output and simultaneously batteries are charged.
Lift UPS has three main parts i.e. Rectifier, Battery, Inverter. Elevator takes the three phase supply from the mains. Whenever mains fails, inverter is turned ON to generate three phase power to feed the Elevator, hence the elevator continues to operate on battery mode till back-up is available.
Compared to diesel gensets, Lift UPS has the advantage is that it does not generate any noise. It provides pure sine wave output. It is environment friendly, it does not produce any smoke or gas.
Pioneer Energy provides the service of lift UPS 6KVA/72VDC, 8KVA/96VDC, 10KVA/180VDC, 12KVA/240VDC, 15KVA/240VDC.
