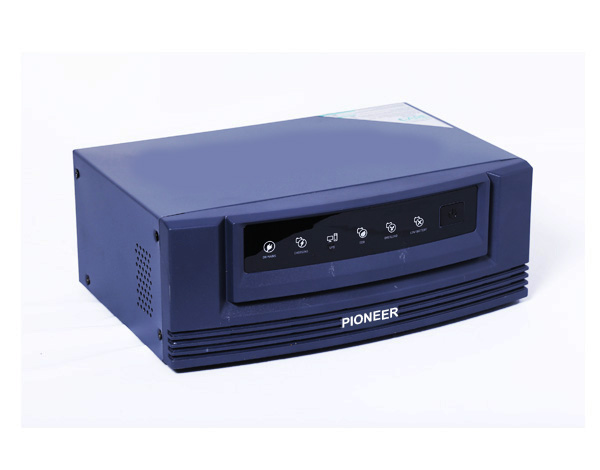

Home/Offline-UPS
Specifications
| No | Characteristics | Single Phase |
|---|---|---|
| 1 | Input Voltage(In Inverter Mode) | 130V – 290V |
| 2 | Output Voltage Mains mode |
Output Voltage=Input Voltage |
| 3 | Output Voltage Inverter mode |
220V +/- 1% |
| 4 | Charging Current | 8A |
| 5 | Power Factor | 0.8 |
| 6 | Technology | Sine & Square Wave |
| 7 | Battery Type | Flat, Tubular |
| 8 | Protection | Short Circuit, overload, deep discharge |
Home UPS/Inverter charge the battery when Mains is ON. When mains supply turns OFF, then internal inverter immediately switches ON so the supply remains continious. It gives supply through battery, DC voltage is converted into AC voltage. This AC voltage is given to the load for continious supply.
This is available in two types:
a) Sine Wave Output
Sine Wave Output Inverter Produces less humming noise compared to square wave output. Pioneer Energy provides sine wave output Home UPS/Inverter in 850VA/12V, 1650VA / 24V, 2000VA / 24V, 3.5KVA/48V, 5KVA/72V, 5KVA/96V, 6KVA/120V, 10KVA/120V.
b) Square wave Output
It produces High humming noise & safety of appliances less as compare to sine wave output. Every Product running on Square Wave Inverter produce heat, so energy is wasted on heat. It is available in 300VA/12V, 650VA/12V ECO, 850VA/12V ECO.
Due to advantages of sine wave inverter, it is used in most of applications for continious supply. To calculate size of inverter, we can use the power calculator. According to that power (wattage) we can suggest the Inverter.
